Description
Product Overview

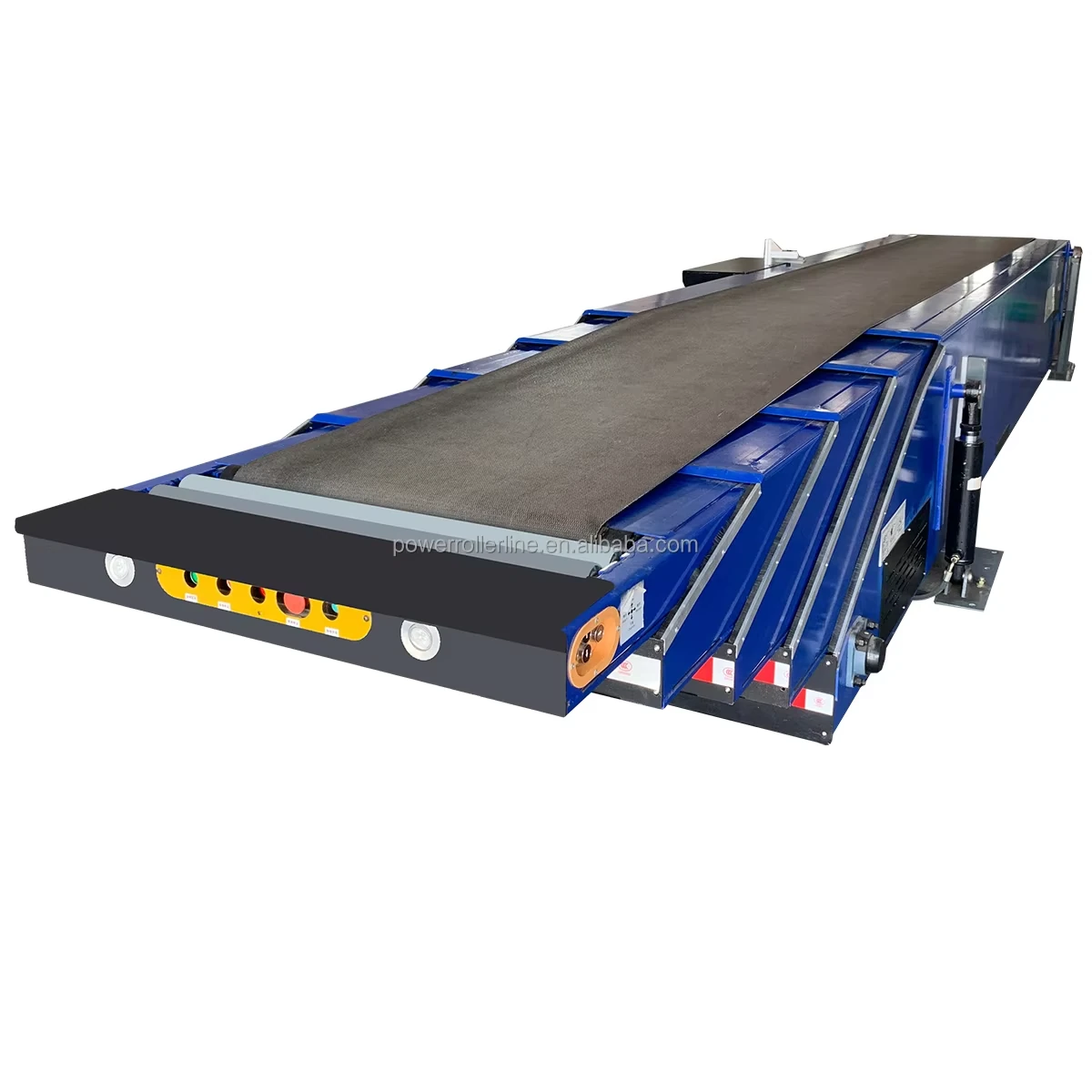

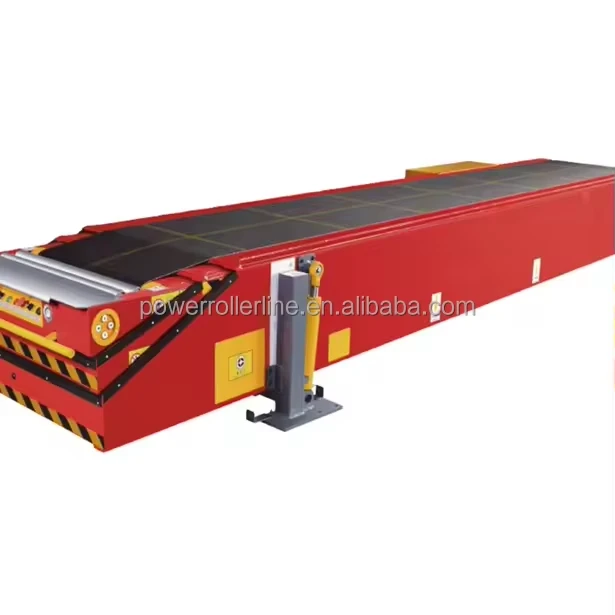

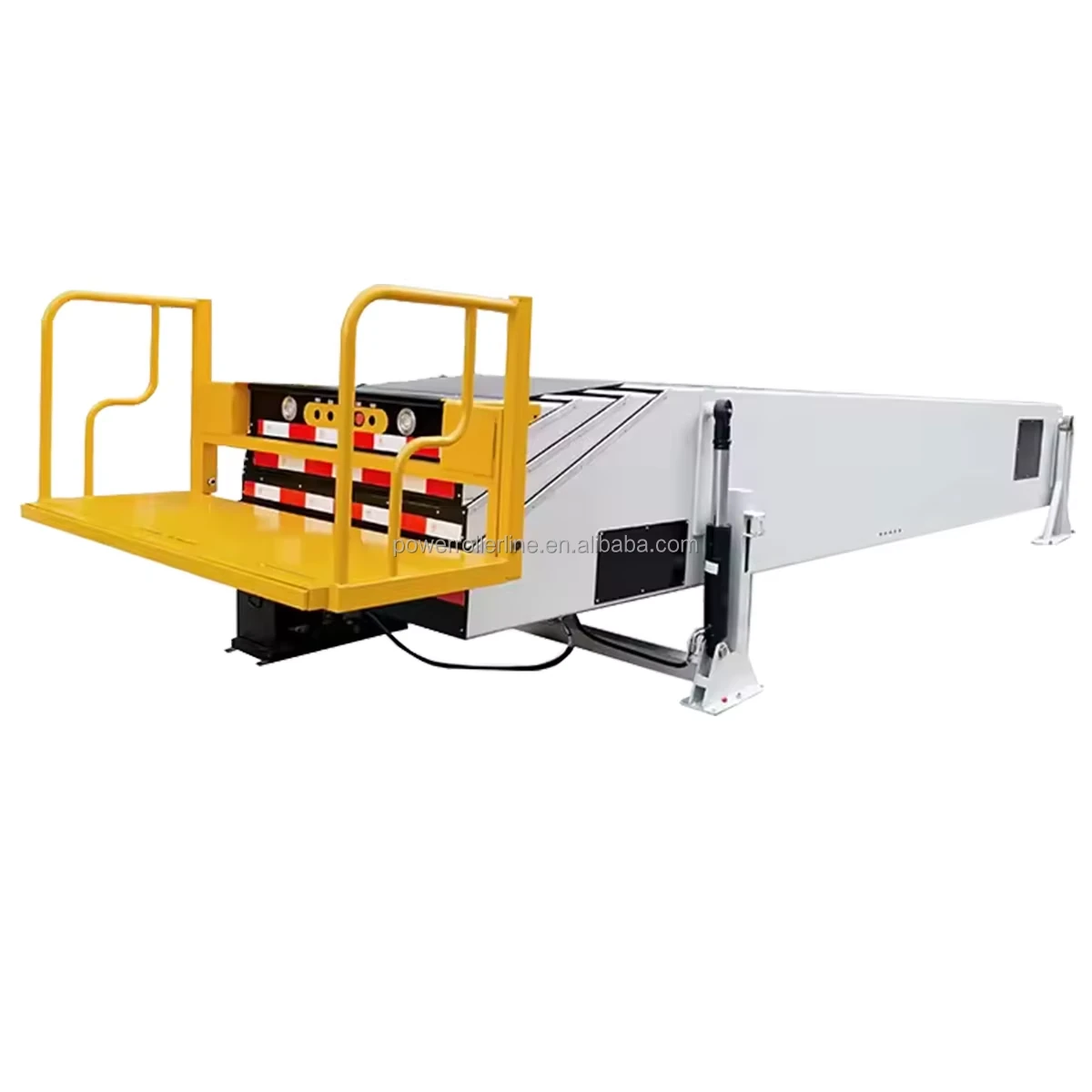

A telescopic belt line extends toward cargo inside a truck or container and retracts when the vehicle changes. Select the section count, reach and loading height around your dock.
Key Features
- Telescopic reach moves the loading point into the vehicle.
- Forward and reverse belt travel supports loading and unloading.
- The four-section reference range provides separate base, extension and overall lengths.
Technical Specifications
| Model | Base length A | Extension B | Fully extended C |
|---|---|---|---|
| TC-5-9-14 | 5000 mm | 9000 mm | 14000 mm |
| TC-6-12-18 | 6000 mm | 12000 mm | 18000 mm |
| TC-7-14-21 | 7000 mm | 14000 mm | 21000 mm |
| TC-8-17-25 | 8000 mm | 17000 mm | 25000 mm |
These dimensions apply to the four-section range. Two- and three-section machines require their own configuration. Extension B is the travel beyond the fixed base, not total conveyor length.
Configuration details
| Parameter | Four-section reference |
|---|---|
| Effective belt width | 600 / 800 mm |
| Belt speed | 10–40 m/min, adjustable |
| Direction | Forward and reverse |
| Main structure | Q345 steel; 5.0 mm body plate |
| Belt | 3.0 mm PVK composite belt |
| Conveying / telescoping motor | 1.5 kW / 400 W |
Load rating, supply voltage, working height and options are confirmed in the final project specification.
Available Configurations
Choose the section count and extended reach around vehicle length and dock space. Confirm belt width, working height, power supply and cargo requirements before specifying optional equipment.
Applications
Truck and container loading or unloading at warehouses, distribution centers and dispatch docks.
Product Gallery
Equipment Video
Actual truck-unloading footage using a four-section telescopic belt conveyor.
FAQ
How is extension different from total length?
Extension is the travel beyond the fixed base. Fully extended length includes both the base and the extension; use the correct dimension when checking the dock layout.
What should I send for a quotation?
Send cargo dimensions and maximum item weight, required conveying distance and height, the working area and power supply. Include a site photo or layout if available.
Are the listed specifications the final order specifications?
The tables describe the stated reference configuration. Confirm the selected model, dimensions and operating limits in the approved quotation and engineering layout.
Related Products

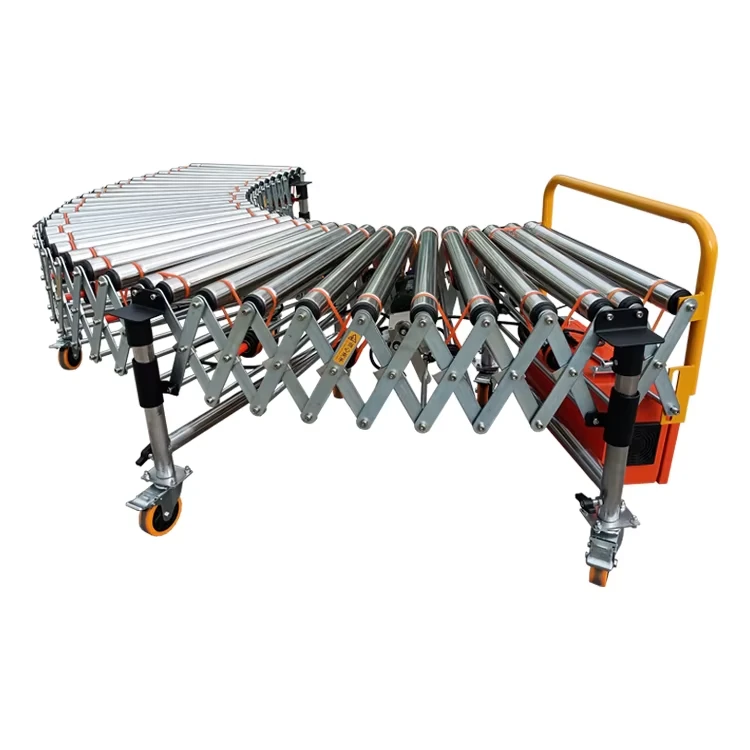

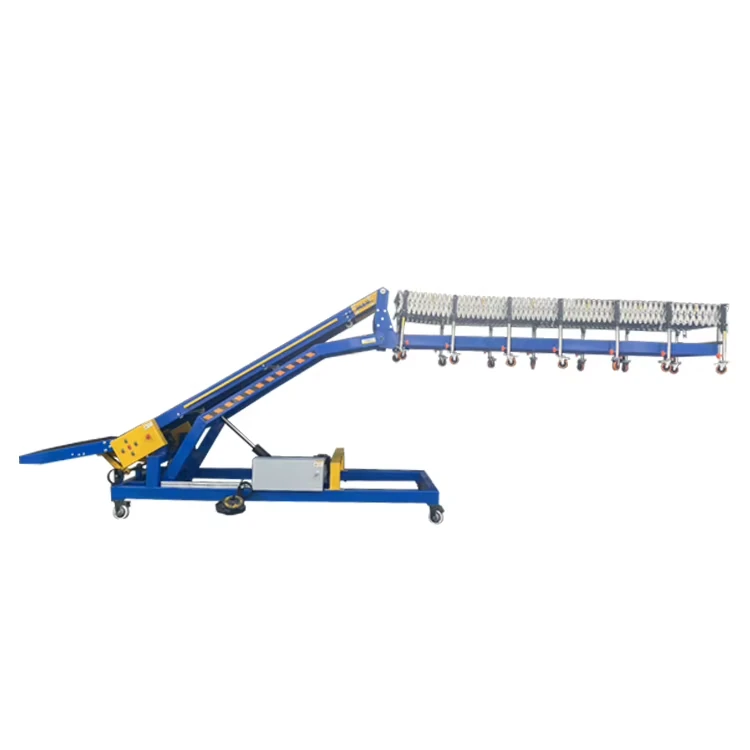

Hydraulic Lifting Belt Conveyor · Powered Roller Conveyor
