Description
Product Overview

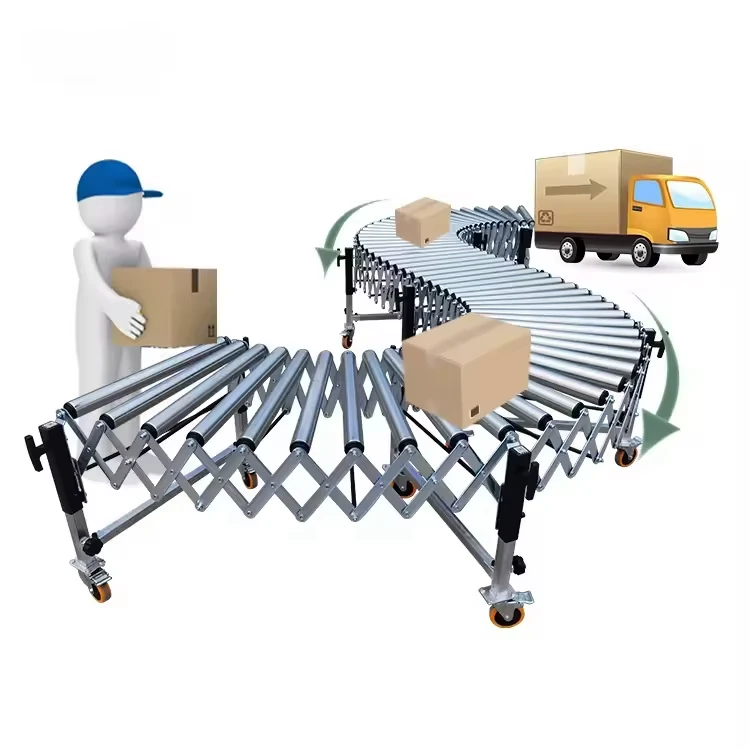

Gravity roller sections provide a movable path for flat-bottom cartons and other suitable goods. Cargo movement depends on manual handling or a controlled slope; the receiving end and stops must be planned with the line.
Key Features
- Non-powered rollers support manual or gravity-assisted transfer.
- Flexible positioning helps connect changing handling points.
- The reference roller and frame details support configuration review.
Technical Specifications
| Parameter | Specification |
|---|---|
| Drive | Gravity / manual push |
| Retracted section length | 485 mm |
| Extended section length | 1700 mm |
| Effective widths | 500 / 600 / 800 mm; custom widths on request |
| Roller diameter | 38 mm |
| Roller wall thickness | ≥1.5 mm |
| Shaft material | Q235 steel |
| Frame steel | Q345; wall thickness ≥3.5 mm |
| Leg arrangement | Height-adjustable sleeve structure |
| Rollers per section | 12 |
Load rating and permitted slope are confirmed against cargo weight, base size, impact at entry and final section layout.
Width and footprint
| Effective width | Overall width |
|---|---|
| 500 mm | 655 mm |
| 600 mm | 755 mm |
| 800 mm | 955 mm |
Available Configurations
Confirm conveyor length, roller spacing, effective width and receiving height. For gravity flow, review the slope, cargo behavior and safe stopping arrangement.
Applications
Packing stations, warehouse transfer and connections between manual handling points for suitable stable-bottomed cargo.

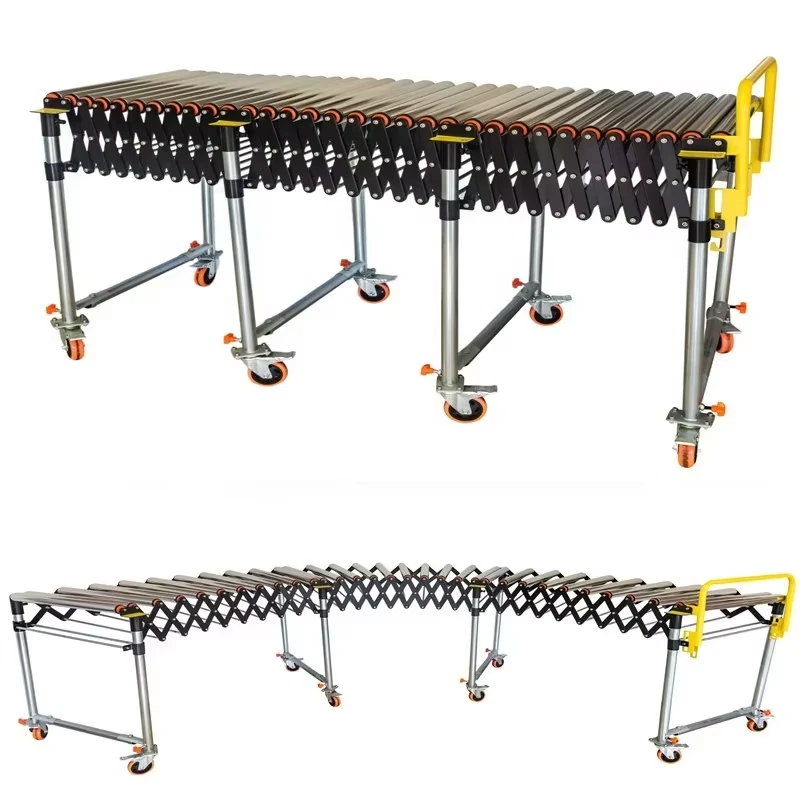

Product Gallery
FAQ
Does a gravity roller conveyor need a motor?
The conveying rollers are not powered. Goods move by manual force or a suitable slope; actual flow depends on the cargo and installation.
What is needed for a quotation?
Send cargo dimensions and maximum item weight, conveying distance and height, available working area and power supply. Include a site photo or layout if available.
Are these the final order specifications?
The table describes the stated reference configuration. Final dimensions and operating limits follow the approved quotation and engineering layout.
Related Products
Powered Roller Conveyor · Skate Wheel Conveyor
Configure your conveyor
Send the maximum item weight, cargo bottom dimensions, line length, working height, and whether the route needs to turn or retract.
