Description
Product Overview
Expandable skate-wheel sections form a movable transfer route for goods with a firm, flat base. Retract the line for storage and reposition it when the unloading point changes.
Key Features
- Non-powered skate wheels support suitable rigid-bottomed cartons and packages.
- An expandable layout can adapt to changing handling distances.
- The lightweight contact arrangement suits manual or gravity-assisted flow.
Technical Specifications
| Parameter | Specification |
|---|---|
| Drive | Gravity / manual push |
| Retracted / extended section length | 420 / 2100 mm |
| Extension ratio | 1:5 |
| Standard effective width | 500 / 600 / 800 mm |
| Wheel diameter | 48 mm |
| Wheel options | ABS engineering plastic or galvanized steel |
| Axle diameter | 8 mm |
| Structure | Height-adjustable legs; braked casters |
| Frame material | Q345 frame steel; carbon steel / 201 stainless steel structure |
ABS wheel configuration
| Effective width | Overall width | Wheels per section |
|---|---|---|
| 500 mm | 678 mm | 66 |
| 600 mm | 778 mm | 88 |
| 800 mm | 978 mm | 110 |
Confirm the permitted load, entry impact and support under the smallest carton before selection. Gravity conveying needs controlled receiving and end restraint.
Available Configurations
Review wheel layout, effective width, extended length and handling height. Confirm minimum package dimensions, bottom stiffness and stopping requirements before selection.
Applications
Carton transfer, packing areas and temporary warehouse handling connections for suitable rigid-bottomed packages.

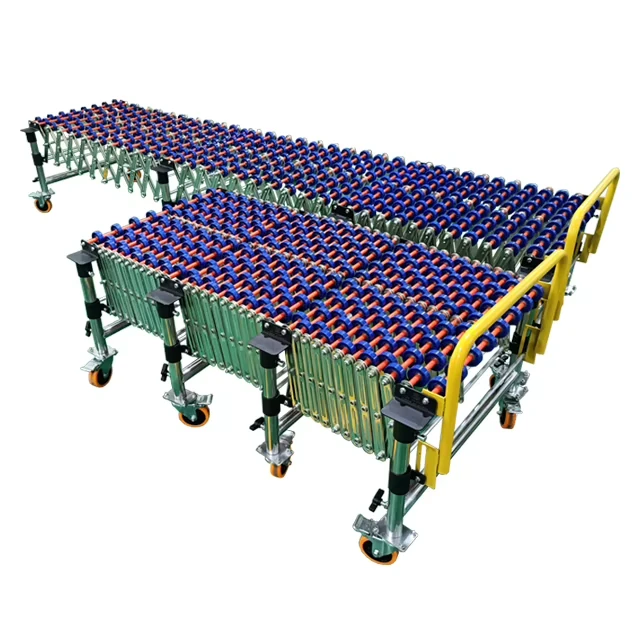

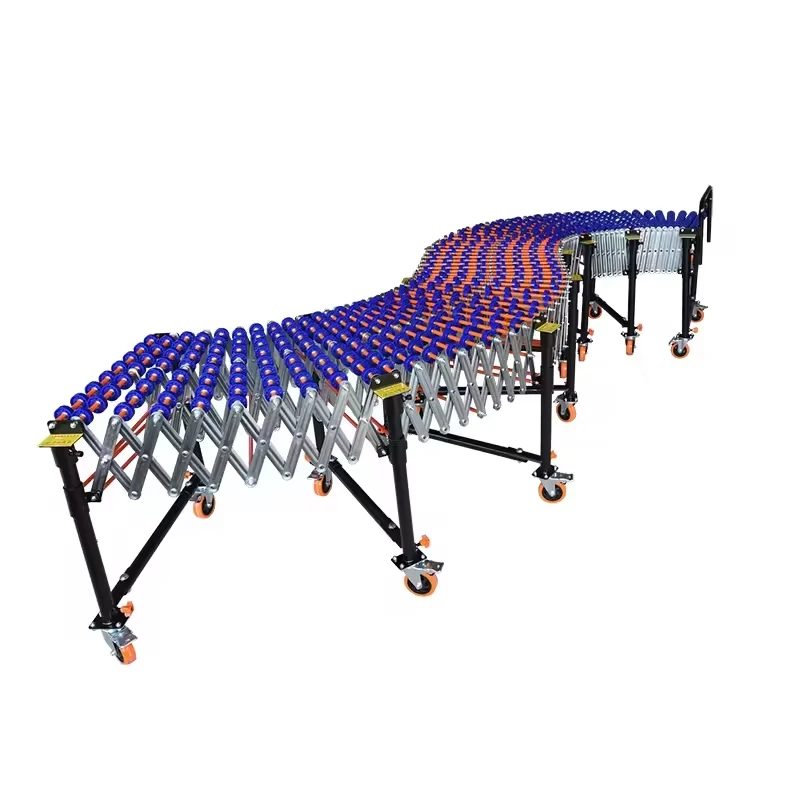

Product Gallery
FAQ
Is it suitable for soft bags or irregular bottoms?
Small wheels need a sufficiently rigid and stable contact surface. Soft bags or irregular bottoms may require a belt conveyor or a different roller arrangement.
What is needed for a quotation?
Send cargo dimensions and maximum item weight, conveying distance and height, available working area and power supply. Include a site photo or layout if available.
Are these the final order specifications?
The table describes the stated reference configuration. Final dimensions and operating limits follow the approved quotation and engineering layout.
Related Products
Gravity Roller Conveyor · Powered Roller Conveyor
Configure your conveyor
Send carton size and weight, required extended length, folded storage space, receiving height and preferred wheel material.
