Description
Product Overview

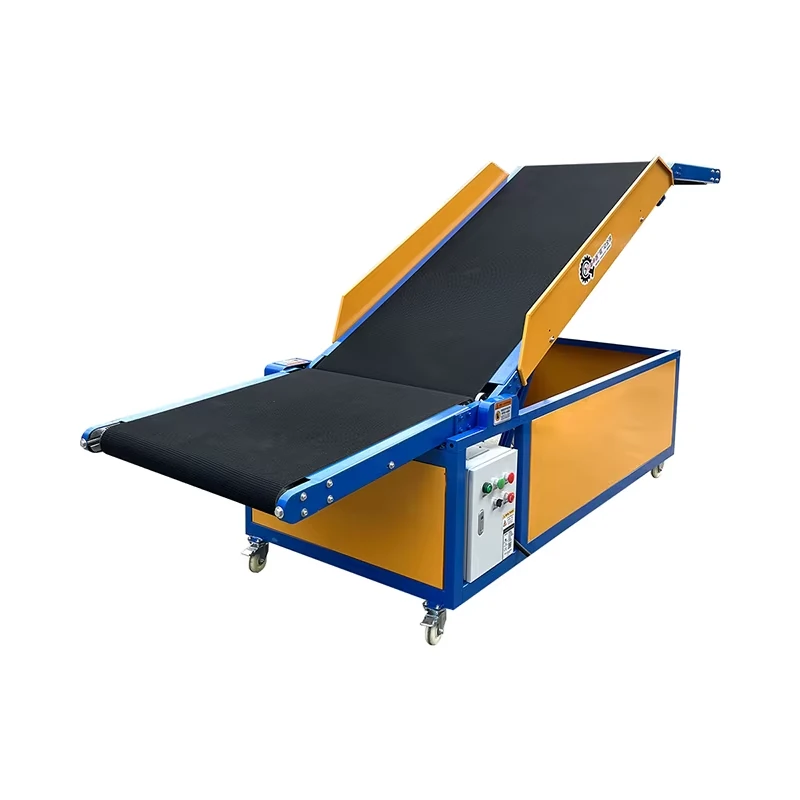

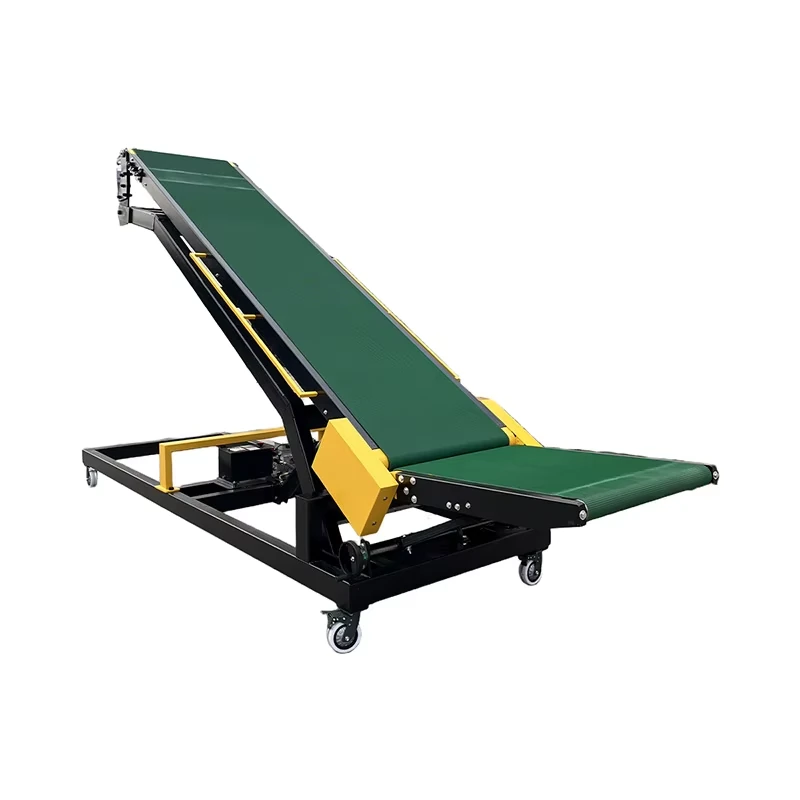

A hydraulic lifting belt conveyor connects floor-level handling with a truck or receiving platform. Choose the machine size around the vehicle, cargo and available working area.
Key Features
- Inclined belt conveying for loading and unloading between different handling heights.
- Hydraulic adjustment to position the discharge end for the receiving vehicle or platform.
- Forward/reverse conveying and emergency-stop controls on the reference configuration.
Technical Specifications
The following specifications apply to the small hydraulic model. Other sizes and optional roller extensions require a separate configuration review.
| Parameter | Specification |
|---|---|
| Overall length | 5400 mm |
| Incline section / lower platform | 2500 mm / 850 mm |
| Support frame length | 2000 mm |
| Effective belt width | 600 / 800 mm |
| Rated distributed load | 80 kg/m |
| Conveying speed | Up to 30 m/min |
| Conveying motor | 750 W; 50 Hz; 220 / 380 V |
| Hydraulic pump | 2.2 kW; 50 Hz; 220 / 380 V |
| Belt | 5.0 mm PVC, anti-slip grass-pattern surface |
| Main body / support frame | Q345 / Q235B steel |
| Controls | Forward / reverse, up / down, emergency stop |
Confirm truck-bed height, cargo weight and electrical supply before quotation. Final dimensions and load rating follow the approved configuration.
Available Configurations
Review belt width, machine size, receiving height and optional roller extensions with our team. Electrical supply and the required conveying direction should be specified before quotation.
Applications
Truck loading and unloading, warehouse dispatch areas and connections between floor-level handling and a raised receiving point. Cargo suitability depends on the item weight, dimensions and belt contact surface.
Product Gallery
Equipment Video
Actual container-loading footage combining a hydraulic lifting belt conveyor with a powered roller conveyor.
FAQ
Is this a lifting platform?
No. This is a belt conveyor with hydraulic height adjustment for transferring cargo continuously; it is not a general-purpose lifting platform.
Which dimensions are needed for selection?
Provide the truck-bed height range, cargo dimensions and maximum item weight, available working area, conveying direction and electrical supply.
Does the reference specification cover every size?
No. The table describes the small hydraulic model. Final dimensions and load capacity must be confirmed for the selected configuration.
Related Products
Powered Roller Conveyor · Telescopic Belt Conveyor
Configure your conveyor
Send your vehicle-bed height, cargo dimensions and weight, required width, and a photo or drawing of the loading area.
