Description
Product Overview

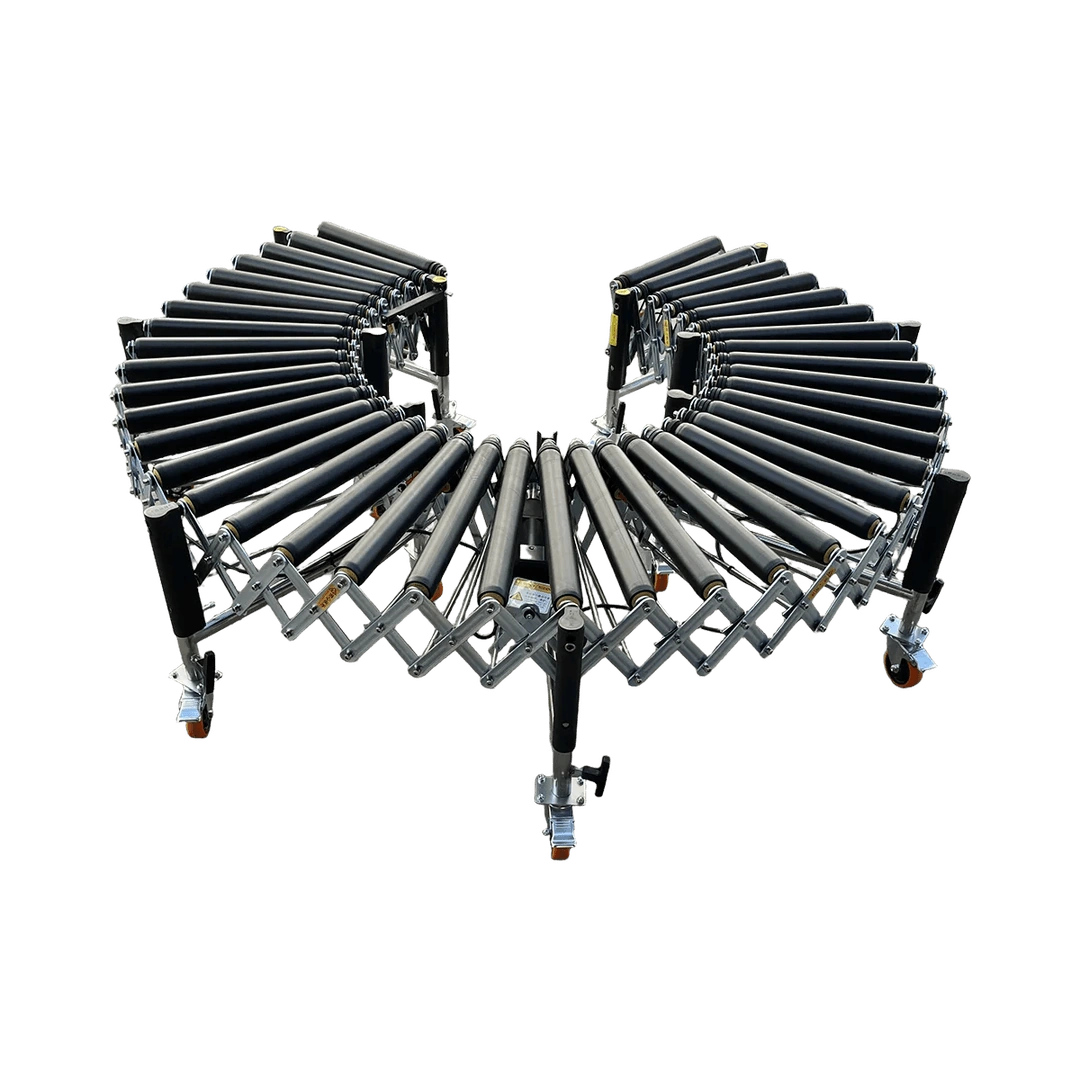

Rubber-covered rollers provide a different cargo contact surface from bare metal rollers. Select the drive, roller spacing and surface around the package base and material.
Key Features
- Rubber-covered rollers provide a cushioned cargo contact surface.

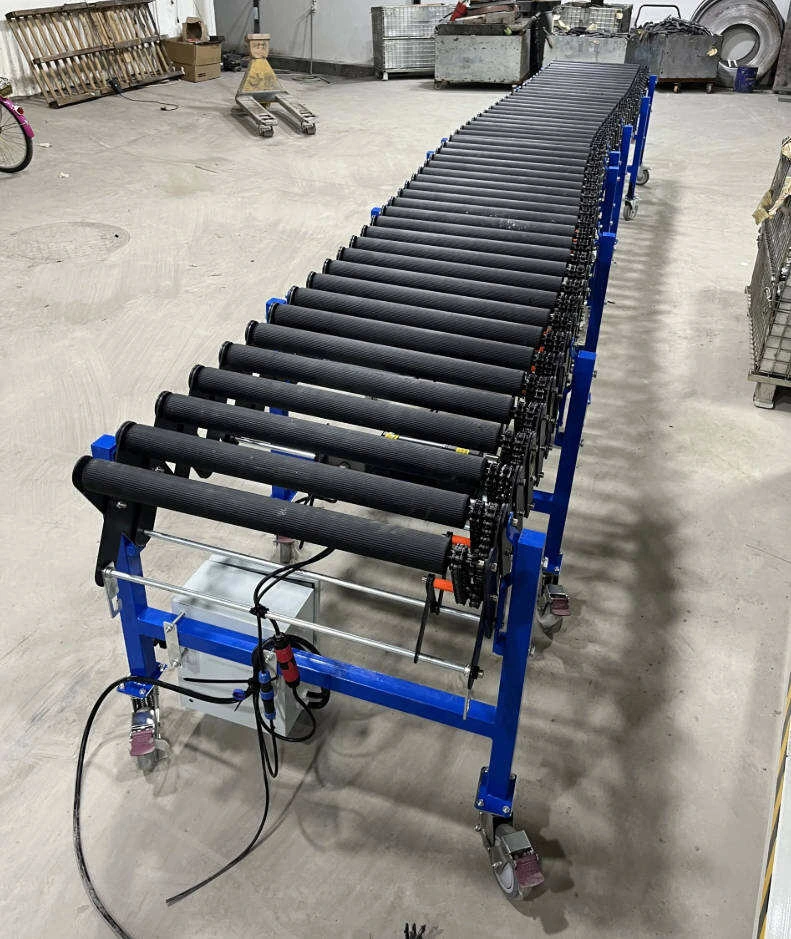

- The reference configuration uses a chain-driven roller arrangement.
- Select the line around cargo shape, bottom surface and transfer conditions.
Technical Specifications
| Parameter | Reference configuration |
|---|---|
| Drive | Chain-driven rubber-covered rollers |
| Retracted / extended section length | 680 / 1500 mm |
| Effective width | 500 / 600 / 800 mm |
| Rubber-covered roller diameter | 54 mm |
| Roller wall thickness | ≥1.5 mm |
| Motor arrangement | One geared motor per 1.5 m section |
| Supply options | 220 / 380 V, 50 Hz |
| Controls | Forward / reverse, stop and speed control |
| Support | Height-adjustable legs; braked swivel casters |
| Effective width → overall width | 500 → 731 mm; 600 → 831 mm; 800 → 1031 mm |
Chain and multi-wedge belt versions require separate configuration checks. Load and speed are confirmed for the selected drive, cargo and section layout.
Available Configurations
Discuss coating suitability, effective width, roller spacing and conveying length. Confirm cargo condition, load distribution and electrical supply for the required operating environment.
Applications
Warehouse cargo transfer and production handling where the goods benefit from a rubber-covered contact surface.
Product Gallery
FAQ
How is this different from an uncoated roller conveyor?
The contact surface is rubber-covered rather than bare metal. The best choice depends on cargo finish, grip requirements, weight and the operating environment.
What is needed for a quotation?
Send cargo dimensions and maximum item weight, conveying distance and height, available working area and power supply. Include a site photo or layout if available.
Are these the final order specifications?
The table describes the stated reference configuration. Final dimensions and operating limits follow the approved quotation and engineering layout.
Related Products
Powered Roller Conveyor · Gravity Roller Conveyor
Configure your conveyor
Send cargo photos, item weight, underside dimensions, conveying length, working height and drive preference.
