Description
Product Overview

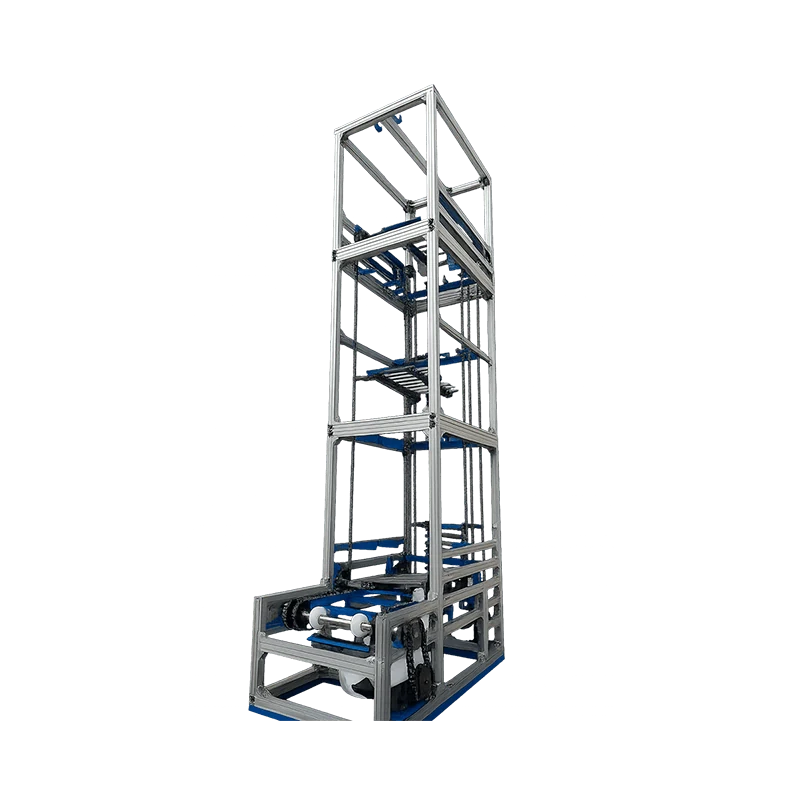

A vertical conveying section links lower and upper transfer points. Plan its infeed, outfeed and surrounding access together with the connecting roller or belt lines.
Key Features
- Vertical conveying connects handling points at different levels.
- The product page documents a C-type reference arrangement.
- Entry, discharge and surrounding transfer equipment are reviewed together.
Technical Specifications
| Parameter | Reference configuration |
|---|---|
| Format | C-type continuous vertical conveying |
| Model family | VC-C-04H-050C through VC-C-20H-050C |
| Lifting height | 4–20 m, selected for floor levels |
| Rated load | 50 kg/m |
| Cargo footprints | 600 × 800 / 800 × 800 / 800 × 1200 mm |
| Connections | Lower infeed and upper outfeed matched to adjacent equipment |
These values apply to the C-type 50 kg/m range. Confirm cargo orientation, item weight, floor openings and transfer heights for the selected model.
Available Configurations
Provide floor-to-floor height, cargo size and weight, receiving direction, inlet/outlet heights and available footprint. The final transfer arrangement and protective measures require project-specific confirmation.
Applications
Inter-level material transfer and connections between warehouse or production handling lines for suitable goods.
Product Gallery
Layout confirmation
| Required information | What to provide |
|---|---|
| Building | Floor-to-floor rise, opening size and available footprint |
| Cargo | Heaviest item, bottom dimensions and packaging stability |
| Material flow | Infeed/outfeed direction and connection heights |
| Integration | Supply pace, receiving capacity and buffering |
| Site access | Maintenance clearance and operator access |
FAQ
Is the C-type reference suitable for every installation?
No. Cargo, transfer direction, building clearance and inlet/outlet connections determine the suitable arrangement. Confirm the final engineering layout before ordering.
What is needed for a quotation?
Send cargo dimensions and maximum item weight, conveying distance and height, available working area and power supply. Include a site photo or layout if available.
Are these the final order specifications?
The table describes the stated reference configuration. Final dimensions and operating limits follow the approved quotation and engineering layout.
Related Products
Double-Wing Belt Conveyor · Powered Roller Conveyor
Configure your conveyor
Send a floor plan and elevation sketch, cargo dimensions and weight, transfer direction and required operating pace.
